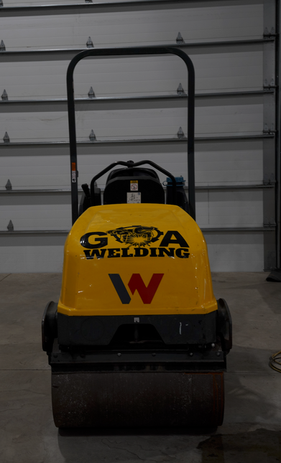

Wacker Neuson RD12
The RD12 tandem vibratory roller with 35.4 inch (900 mm) drum width and an overall operating weight of 1.2 Tons includes dual drum drive and articulated steering for excellent maneuverability. A front drum vibration and static rear drum offer a highly efficient and compact roller. This machine is ideally suited for commercial and residential compaction of asphalt and granular subbase material. Primary applications include parking lots, driveways, secondary roads, repair work, and nature trails. Additionally, the RD12 is utilized for turf rolling in the landscape and golf industry segments.
-
Increased water & fuel capacity minimizes the need for refilling during the day increasing jobsite efficiency.
-
Fully recessed hydraulic motors provide excellent curb and side clearance allowing easy compaction near curbs, walls, and in confined areas.
-
Unique hood design and pivoting floor plate provide quick, tool-free, and spacious access to engine, hydraulic and water systems.
-
Ergonomically designed operator station provides comfort and efficiency to the operator. Ergonomic joystick with integrated water and vibration functions. Fuel and water gauges provide operator feedback to fluid levels during operation.
-
Powered by a proven Honda GX630 engine, the RD12 provides contractors with a highly efficient machine for a variety of applications.
PERFORMANCE
-
Operating Weight2,964 lbs.
-
Length x Width x Height74in. x 38.8in. x 90.6in.
-
Drum width35.4in.
-
Drum diameter22in.
-
Side clearance right1.7 in.
-
Side clearance left1.7 in.
-
Curb clearance right15.7 in.
-
Curb clearance left15.7 in.
-
Centrifugal force dynamic (front drum)3,400 lbf
-
Frequency4,200 Vpm
-
Amplitude0.043in.
-
Linear force - front / rear (static)31.4 / 39.5 lb/in.
-
Linear force dynamic (front)96 lbs./in.
-
Travel speed forward5 mph
-
Travel speed reverse5 mph
-
Surface capacity area78,000 ft²/h
-
Gradeability max.30%
-
Turning radius outside112.2in.
-
Engine / Motor TypeHonda GX630; Air-Cooled, 2-Cylinder, Gasoline Engine
-
Displacement42 in³
-
Operating performance max. rated at 3600 rpm20.8 hp
-
Speed Operating Speed3,100 rpm
-
Fuel consumption1.6 US gal/h
-
Fuel tank capacity6.3 US gal
-
Water tank capacity35 US gal
